1.8mm Thickness Galvanized Pipeline reinforced welded mesh For Everglades Gas Pipeline

Brand Name : H&F

Model Number : HF-251104

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 100Rolls

Price : USD 1.96/M~USD2.11/M

Payment Terms : T/T, Western Union

Supply Ability : 64000 Square Meters per month

Delivery Time : According to order quantity

Packaging Details : 6rolls per bundle or as customers' requirements

Product Name : Galvanized Pipeline reinforced welded mesh

Key word : Galvanized Pipeline reinforced mesh

Wire diameter : 1.8mm/2.0mm/2.2mm/2.4mm/2.7mm

Material : hot dipped Galvanized wire/Electric galvanized wire

Line wire quantity : 6lines,8lines,10Lines

Exposed Wire Edge : ≤ 2.5 mm

Hole Size : 25.4mm x 67mm

Zinc coated : 75gm²~100g / m² or custom

Hardness range : 485N/mm2~650N/mm2

Middle line wire pitch : 25.4 mm

Surface treatment : hot dipped galvanized

Width : 190.5mm

Length : 140m/280m or custom

Sample : Free sample can test quality

Contact Now

1.8mm Thickness Galvanized Pipeline reinforced welded mesh For Everglades Gas Pipeline

Pipeline reinforced welded mesh Description:

Pipeline reinforced welded mesh also called Offshore pipeline reinforcement welded mesh.

Pipeline reinforced mesh special design for pipeline industry use the mesh.It is made of different kinds

of wire diameter.The hole size in standard required welded.Each roll width and length can accord

to use make in 80m,100m,140m,145m,280m etc

Its with good feasture anti-rust,anti-water and anti-resistant.Make sure long use time needn't worry

the quality.So use widely for Everglades Gas Pipeline and other pipeline industry.

Pipeline reinforced welded mesh specification list:

Product Name	Pipeline reinforced welded mesh
Material	hot dipped galvanized steel wire
Wire diameter	1.8mm/2.0mm/2.2mm/2.4mm/2.7mm
Hole size	25.4mm x 67mm
Surface treatment	hot dipped galvanized
Zinc coated	75gm²~100g / m² or custom
Middle line wire pitch	25.4 mm
Line wire quantity	6lines, 8lines or 10lines
Exposed Wire Edge	≤ 2.5 mm
Hardness range	485N/mm2~650N/mm2
Width	190.5mm
Length	140m/280m or custom
Sample	Free sample can test quality

Pipeline reinforced welded mesh specification for your choice:

Wire Dia.	Mesh	Width	Length
2.0mm/2.0mm	25.4mm x 67mm	190.5mm	140m, 280m
2.0mm/2.2mm	25.4mm x 67mm	190.5mm	140m, 280m
2.0mm/2.4mm	25.4mm x 67mm	190.5mm	140m, 280m
2.0mm/2.7mm	25.4mm x 67mm	190.5mm	140m, 280m

Pipeline reinforced welded mesh Advantages:

Export high grade quality
New material wire
Uniform welded hole
Enough length in roll
High tensile strength
Standard wire diameter
Standard width
Anti-Corrosion
Anti-rust
Use long time
Strong packing way
Easy install and store
Suitable for sea shipping

Pipeline reinforced welded mesh export different kind for choose:
1.8mm Thickness Galvanized Pipeline reinforced welded mesh For Everglades Gas Pipeline

Pipeline reinforced welded mesh widely application:

Water and Wastewater Pipeline
Subsea Gas & Oil Pipeline
River Bottom Gas & Oil Pipeline
Chemical Processing Pipeline
Everglades Gas Pipeline

Pipeline reinforced welded mesh Package way:

In some rolls make in bundle,like 2rolls,5rolls,6rolls or custom roll quantity
Packing in wooden box
Packing in export pallet
Load container directly in bulk
Same as require

1.8mm Thickness Galvanized Pipeline reinforced welded mesh For Everglades Gas Pipeline

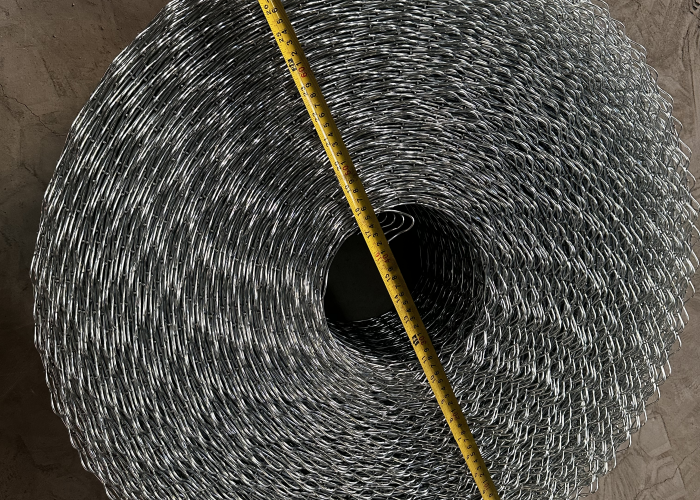

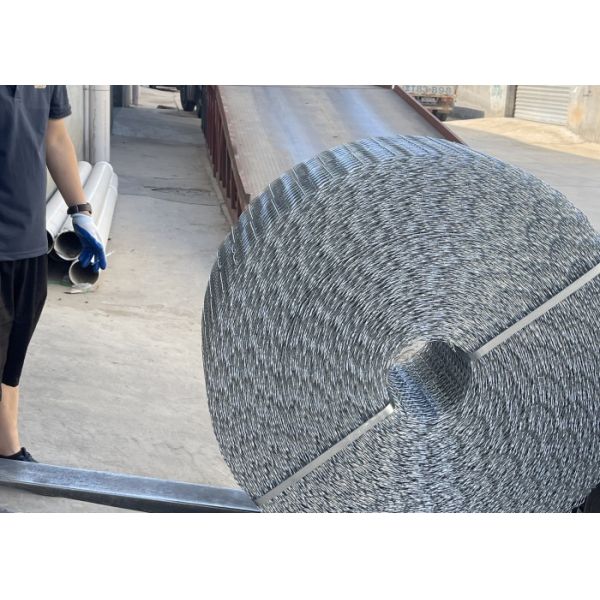

Show our Pipeline reinforced welded mesh product pictures:

1.8mm Thickness Galvanized Pipeline reinforced welded mesh For Everglades Gas Pipeline
